2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers

Product Categories
JINAN HUIYOU CONSTRUCTION MACHINERY CO., LTD
Contact Now

2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers

  • 1
  • 2
  • 3

Brand Name : HYCM-TOWER CRANES

Model Number : SC200/200 Material Hoist Construction Tower Hoist

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set of material hoist construction tower hoist

Price : Negotiation

Payment Terms : 30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight

Supply Ability : about 150 pcs of material hoist construction tower hoist per month

Delivery Time : about 25 days after receiving the deposit

Packaging Details : In nude or as customized, 20'GP or 40'HQ containers for material hoist construction tower hoist

Type : 2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers

Max. lifting height : 150 m (Increased lifting height on request.)

Motor control : Frequency controlled

Speed : 0-60 m/min

Motor power : 2 * 3 *11 kw

Safety device : Mechanical interlocking door system to guarantee the highest safety standards.

Payload capacity : 2 * 2000 kg

Mast section dimension : (1) 650*650*1508mm (2) 800*800*1508mm

Contact Now

2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers





Specifications for 2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers

Rated Load 2*2000kg
Rtated Passengers 2*20
Rated Lifting Speed 34.4m/min
Motor Power 2*3*11kw
Motor Breaking Torque 120N.M
Overrun Protection Device breaking Speed 51-56m/min
Overrun Protection Device Rated Breaking Load 30KN
Max.Lifting Height 150-200m
Cage Size(L*W*H) 3.0*1.3*2.3m
Mast Section Size(L*W*H) 0.65*0.65*1.508/0.80*1.80*1.508m
Mast Weight 158/172kg
Rated Erection Load 200kg





Our Service for 2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers
Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
Warranty Assurance
For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.


Our Skilled Team for 2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field.
Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction are always available and acceptable.


Different specifications for construction hoist mast section
(1) 650*650*1508mm
(2) 800*800*1508mm

Different specifications for tower crane mast section
(1) 1.2*1.2*3m
(2) 1.4*1.4*3m
(3) 1.6*1.6*2.5m
(4) 1.6*1.6*3m
(5) 1.83*1.83*2.5m
(6) 2.0*2.0*3.0m


Electro-static coating Specifications: 650*650*1508mm or 800*800*1508mm
Being Galvanized Specifications: 650*650*1508mm or 800*800*1508mm


Main materials of Hoist Mast Section
a. High quality steel plate Q235B bended by special machine: Thickness 5mm
b. Welded steel tube Q345B ( Seamless steel tube 20# is also available): Ø76×4.5mm or Ø89×4.5mm (Thickness of 6mm or 8mm is also available)
Electro-static coating Specifications: 650*650*1508mm or 800*800*1508mm
Being Galvanized Specifications: 650*650*1508mm or 800*800*1508mm

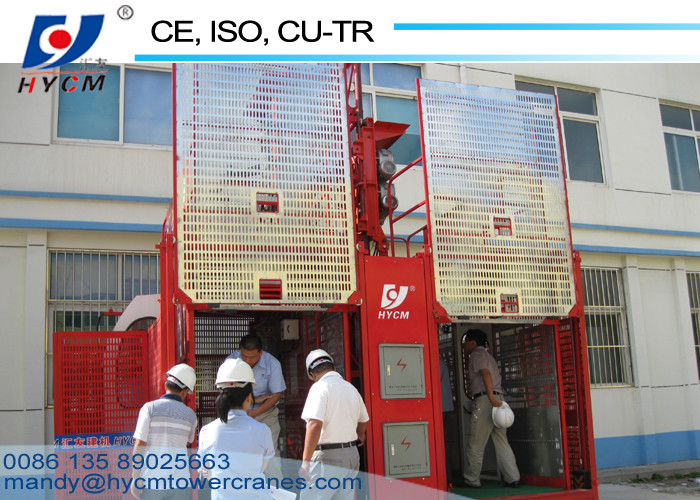

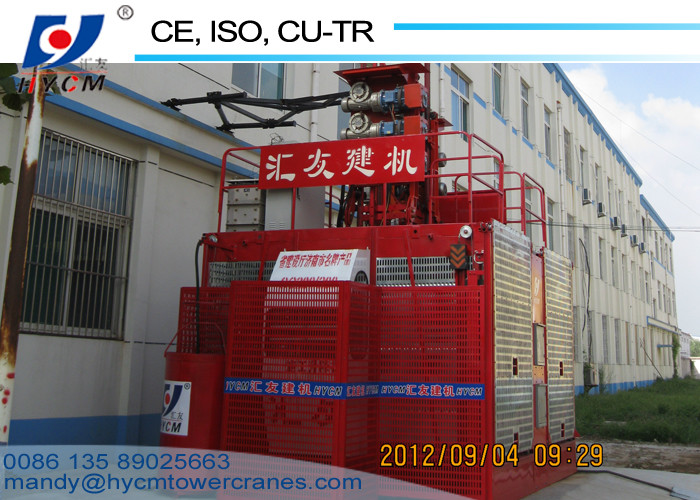

Photos for 2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers


2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers


Pre-sales Service for 2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers
  • More than 90% of the timely response rate;
  • Timely response to customer questions;
  • Provide professional product solutions;
  • Inquiry and consulting support;
  • Technical support;
  • View our factory.

After-sales Service for 2*2000 kg Double Cages SC200/200 Material Hoist Construction Tower Hoist Manufacturers
  • Provice edited videos of the whole process of operation and maintenance;
  • Provide paper or electronic operation and maintenance instructions;
  • Localized service outlets guarantee;
  • housekeepers respond quickly;
  • Factory-specific equipment.
