100m Working Height ZLP630 Suspension Working Platform 630kg Load
FAQ for 100m Working Height ZLP630 Suspension Working Platform 630kg Load
Q1: What is the Warranty for suspended platform?
A1: For suspended platform, we can supply 0.5 year’s warranty. If any quality problems (not artificial reason) on our side occurred during this period, we will supply a free new one as replacement.
Q2: What is the meaning of ZLP for suspended platform model? And please illustrate.
A2: ZLP is classified according to China National Standard.
“Z” is the acronym of decoration machinery in Chinese language (Zhuang Xiu Ji Xie);
“L” is the second word acronym of platform in Chinese language (Diao Lan);
“P” is the acronym of climbing type in Chinese language (Pa Sheng Shi).
For example: ZLP630 means aerial suspended platform, and 630kg rated load (630 is the main specification rated load)
Q3: What are the optional parts for your suspended platform?
A3:1) Safety belt
2) Concrete counter-weight. (If you don’t need the weights, we could supply the molds for you to make them by yourself.)
Q4: What are the safety devices for your suspended platform?
A4: The safety device for suspended platform includes safety wire rope, safety lock and travel limiter.
Q5: What is process to make an order?
A5: Any inquires will receive our immediate reply (within 24 hours), by contact and communication (online contact is better) to sigh a contract. Then starting to produce and making package within 10 days after receiving the advance payment. A shipment advice will offered after shipping so that you could get the goods in time. 24 hours after-sales service will be supplied for you.
Q6: What is your trade items of suspended working platform?
Qingdao or Shanghai or according to Clients' need. We could accept 1 set of our products as your trial order.
Specifications for 100m Working Height ZLP630 Suspension Working Platform 630kg Load
| Model No. | ZLP630 |
| Rated load(kg) | 630 |
| Lifting speed(m/min) | 9～11 |
| Hoister model | LTD63 |
| Motor power(kw) | 2×1.5 |
| Brake torque(N.m) | 15.2 |
| Rated stretch of front beam(mm) | 1100-1700 |
| Suspending Platform | No. of platform rack | Single rack |
| No. of platform | 3 |
| L×W×H(mm) | (1.5+2+2.5)×690×1180 |
| Suspending mechanism(kg) | 2×175 Kg |
| Counterweight(kg) --optional | 25×40pcs |
| Diameter of steel rope(mm) | 8.3 |
| Voltage(v) 3PHASES | 220V/380V/415V (customized) |
| Ambient temperature | -20℃~+40℃ |
| Ambient relative humidity | ≤ 90%(25℃) |
Our Service for 100m Working Height ZLP630 Suspension Working Platform 630kg Load
a.Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
b.The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
c.Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
d.Warranty Assurance
For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.
Photos for 100m Working Height ZLP630 Suspension Working Platform 630kg Load
|
|

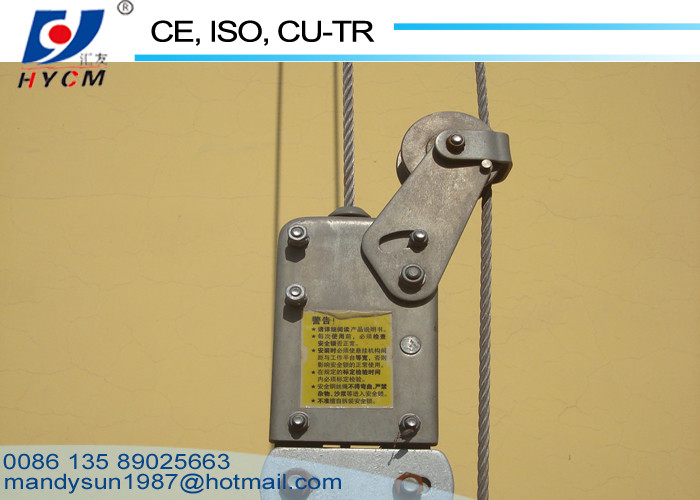

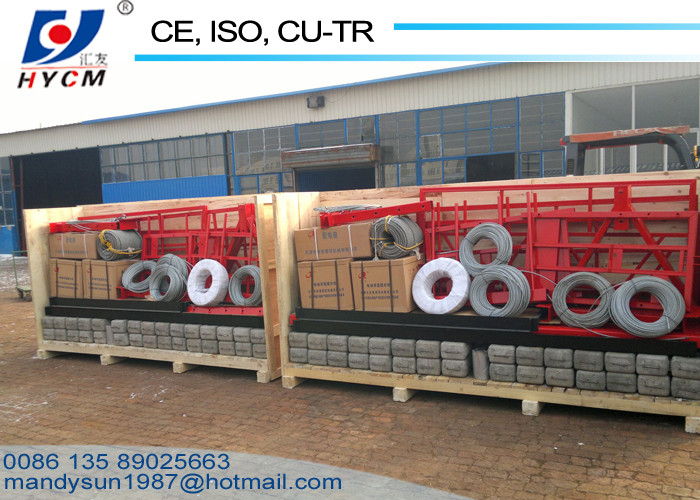

100m Working Height ZLP630 Suspension Working Platform 630kg Load Images
|
